[ES-C40-SDB]

Social Distancing Virtual Sign 2’ to 5’ (C40)


$378.00
Select a Sign
Ambient Brightness
Desired Image Size or Size Range
Mounting Distance or Range
Quantity
Indoor Virtual Sign Solution Bundle, 2' - 5' Sign Size, ES-C40


Description
Features
Specifications

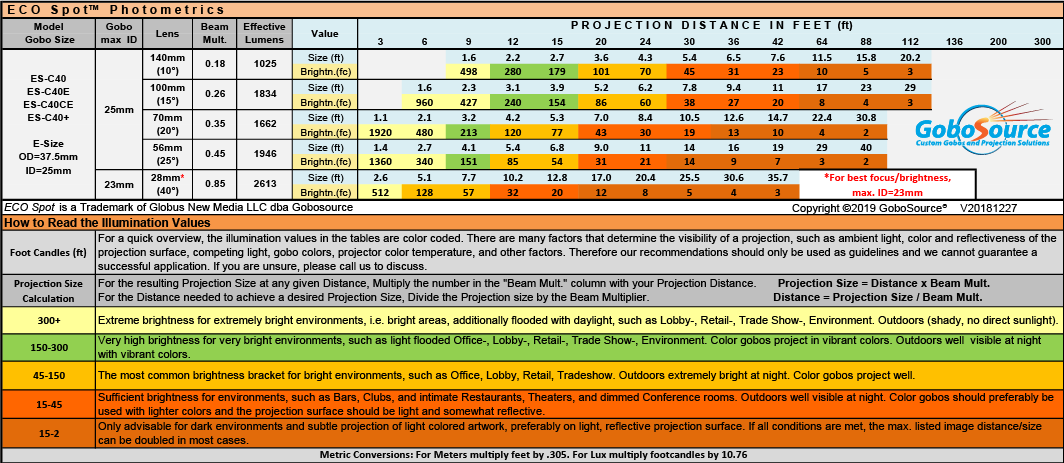

Photometrics
Set Up Video
Resources
This Bundle consists of an ECO Spot C20PC Gobo Projector configured with a Social Distancing Sign of your choice:
Overview of our Social Distancing and COVID-19 Safety Gobos
Our Social Distancing and COVID-19 Safety Gobos in print format


Please enter the brightness level, your required projection size, and mounting distance above. Please also select the virtual sign you will be installing. Based on these values, we will select the most effective projection lens combination for you. If you are flexible with the mounting distance and required image size, please enter a range, it will help us to optimize your configuration.

We will always contact you to clarify any possible issues and send you an order confirmation before proceeding with your order.

  • Takes E-Size (with included adapter) and D-Size metal and glass Gobos up to Full Color. NO FILM GOBOS.
  • Integrated switchable Gobo Rotator
  • 40,000 hours bulb life - never exchange a bulb over the life of the projector.
  • Interchangeable projection lenses
  • make it easily adaptable to a wide range of applications.
  • Multi Voltage 100-240V, 277v 50/60Hz.
  • Quiet cooling fan.
  • Extremely Compact, light weight.
  • Unique yoke/stand-foot allows for Standalone or Truss mounting.
  • Full aluminum housing.
  • Projector
  • Order Code:ES-C40-SDB
    Power Supply:100 - 240V, 277V, 50 - 60Hz, 0.5A, 48W
    Build Options:Exterior Version
    Ambient Temp. Range:-22°F to 122°F (-30°C to 50°C)

  • Optical
  • Lamp:40W LED, 40,000h rated bulb life
    Projection Lens Included:yes, choose from options below
    Available Lenses:Narrow: f=140mm/14°, Semi-Narrow: f=100mm/21°, Medium: f=70mm/28°, Wide: f=50mm/35°, Ultra Wide: f=28mm/45° (Max ID with this lens is 23mm), 3D Prism Lens: f=63mm/36°
    Gobo Size:E-Size - Outer Diameter: 37.5mm, Image Diameter: 25mm, max. Thickness: 4mm
    Alternative Gobo Size:D-Size - Without adapter ring: OD: 53mm, ID: 25mm
    Effective Luminous Flux:2,400lm
    Color Temperature (Kelvin):6,000k +/-500k
    Dimmable:Yes, manual dimming with dial on back plate.

  • Lens Range
  • Bright - up to 40 ft
    Dim - up to 70 ft
    Dark - 150 ft

  • Dimensions
  • Base7” x 3.75”
    Total Length:13” (incl. std. lens)
    Total Height:7.75”
    Weight:7 lbs

  • Package Contents
  • Power Cord
    Test Gobo
    Spare Gobo Retaining Ring
    Gobo Adapter ring for E-Size Gobos
    Integrated Gobo Mounts

Projection Chart
