[ES-B150PCE]

ECO Spot B150PCE Gobo Projector for Rugged Environments


Quote Only
Fully Dimmable Option
Lens Option
Comments
Quantity

ECO Spot LED B150PCE

- for Rugged Environments
- Passive Cooling
- no fans or motors

NOTE: Standard projector dims to approximately 10% brightness at the lowest setting. In extremely bright environments, this is sufficient to appear fully dimmed. However, in standard and dark environments, the fully dimmable option allows the projector to be dimmed to absolutely zero output, whereas the standard configuration would still be faintly visible. Please contact us if you are unsure if you require full dimming in your projection system.

Description
Features
Specifications
Photometrics
Resources

The B150PCE is designed for industrial, dusty or wet environments.

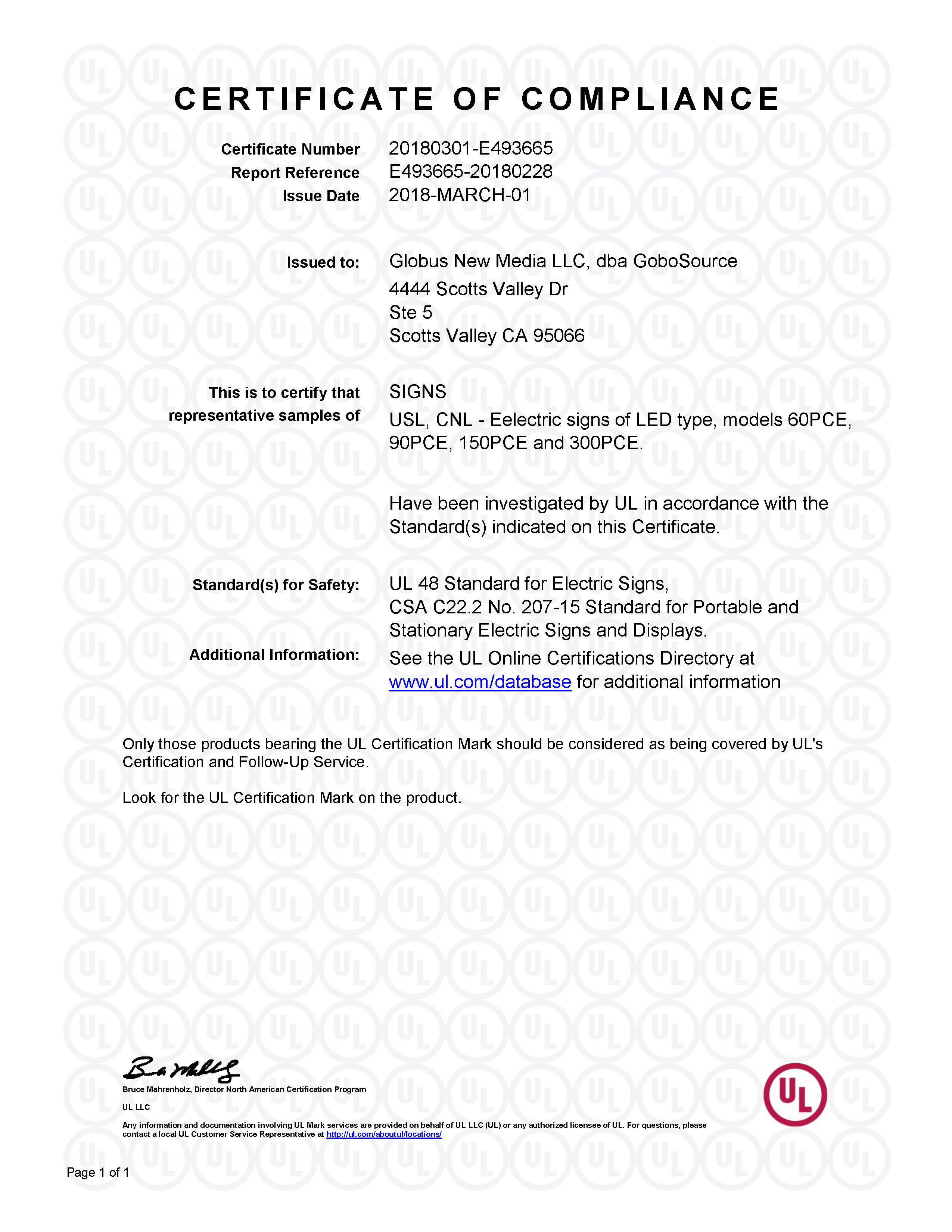

It has no moving parts such as fans or motors. Instead it relies on a huge oversized heat sink that is easy to clean. UL/cUL Certified for industrial and wet environments - certificate number - E4993665


Find The Right Projector - Click Here
  • UL/cUL rated for wet environments (2019 models) E4993665
  • Ideal for dusty and wet industrial environments.
  • Long service intervals.
  • LED lamp technology, Ten times more efficient than comparable halogen Projectors.
  • 35,000 hours bulb life. LED is field replaceable.
  • Automatically adjusts to a wide line voltage range - 100V-240V/277V, 50Hz-60Hz, 220W
  • Takes std. M-size Glass and Metal Gobos, up to Full Color.
  • Interchangeable Projection Lenses.
  • Passive Cooling - no fans or motors..
  • Unique yoke/stand-foot allows for Standalone or Truss mounting.
  • Projector
  • Order Code:ES-B150PCE
    Power Supply:100V-240V/277V, 50-60Hz, 220W
    Ambient Temp. Range: -22°F to 122°F (-30°C to 50°C)
    Can be used in-/and outdoorsExterior Version
    UL/cUl CertificationUL/cUL rated for wet environments (2019 models) E4993665

  • Optical
  • Lamp:150W LED, 35,000h rated bulb life
    Projection Lens Included:yes, choose from options below
    Available Lenses:Semi-Narrow: f=200mm/15°, Medium: f=140mm/20°, Semi-Wide: f=115mm/25°, Wide: f=87mm/30°
    Effective Luminous Flux:12,000lm (effective flux 8,900lm)
    Color Temperature (Kelvin):6,000k +/-500k
    Dimmable:Yes, with trimmer

  • Lens Range
  • Bright - up to 70 ft
    Dim - up to 150 ft
    Dark - up to 300 ft (or more in very dark conditions)

  • Dimensions
  • Gobo Size:M-Size (OD66mm, ID48mm) Max. thickness: 5mm
    Total Length:21 - 26” (incl. lens)
    Height:13.2”
    Width:14.2”
    Weight:23 lbs

  • Package Contents
  • Power Cord
    Test Gobo
    Spare Gobo Retaining Ring
    Integrated Gobo Mounts
    User Manual

Projection Chart
