ECO Spot LED80 with Gobo Rotator

Projection Lens (included)

ECO Spot LED80 - High Power LED Gobo Projector.


High End LED Technology.
  • 50,000hr Bulb Life - never exchange a bulb over the life of the projector.
  • Optical System. Interchangeable Optics.
  • Integrated Gobo Rotator with on/off switch, useful for exact image alignment.
  • Takes std. M-size gobos, up to Full Color, plus foil materials.
  • Unique yoke/stand-foot allows for Standalone or Truss mounting.
  • Full Aluminum Housing
  • For distinctive Office Applications, Retail, Clubs, Show Rooms, and other interior settings that require strong projection, top image quality, and long service intervals.


  • Projector
  • Order Code:ES-LED80
    Power Supply:110 - 130V, 60Hz, 1A, 95W
    Outdoor Version available:Yes, ES-LED80E
    Build Options:Intergrated Rotator, Version with Gobo Changer available

  • Lamp Detail
  • Type:LED
    Life:50,000 Hours

  • Optical
  • Projection Lens Included:yes, choose from options below
    Available Lenses:Semi-Narrow: f=200mm/15°, Medium: f=140mm/20°, Semi-Wide: f=115mm/25°
    Luminous Flux:8,000lm (effective flux 2600lm)
    Color Temperature (Kelvin):6,000k +/- 500k

  • Lens Range
  • Bright - up to 45 ft
    Dim - up to 100 ft
    Dark - up to 140 ft

  • Dimensions
  • Gobo Size:M-Size (OD66mm, ID48mm) Max. thickness: 5mm
    Base7.5" x 5.5" x 13"
    Total length:19” (incl. lens)
    Height:7.5” From base to center
    Total height:10” From base to top
    Weight:13 lbs

  • Package Contents
  • Power Cord
    Test Gobo
    Spare Gobo Retaining Ring
    Integrated Gobo Mounts
    User Manual

  • Resources

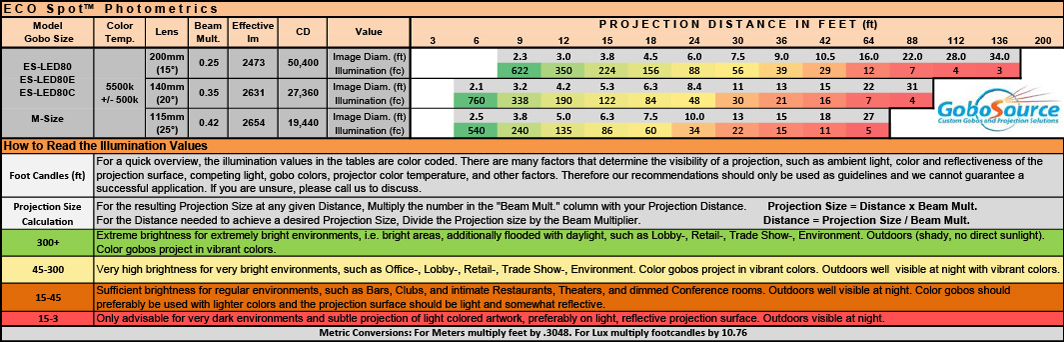

  • Projection Chart
    User Manual
