[ES-B300PCE-SB]

Virtual Sign 12’ to 18' Industrial Environments (B300PCE)


$2,128.00
Select a Sign
Ambient Brightness
Desired Image Size or Size Range
Mounting Distance or Range
Quantity

ECO Spot LED B300PCE


- for Rugged Environments
- Passive Cooling
- no fans or motors

Description
Features
Specifications

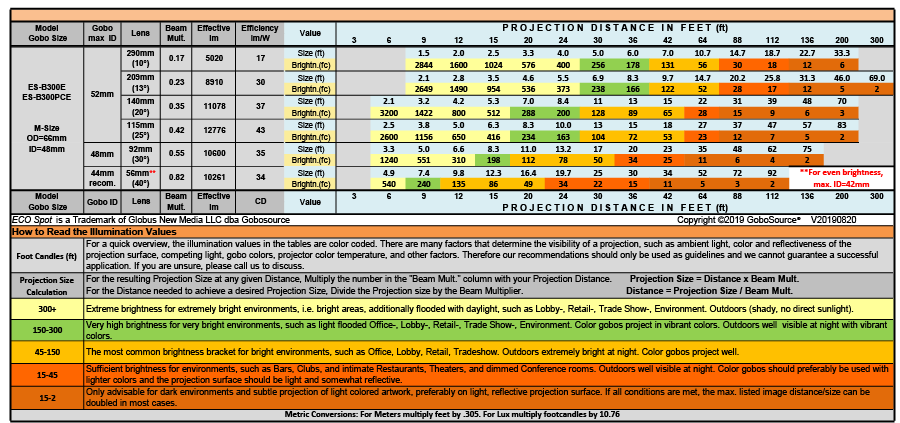

Photometrics
Resources

This bundle consists of an ECO Spot B300PCE LED Gobo Projector configured with a virtual sign. This is for a 12' to 18' sign size.

Please select the sign you would like, the brightness level, your required projection size, and mounting distance above. Based on these values, we will select the most effective projection lens combination for you. If you are flexible with the mounting distance and required image size, please enter a range, it will help us to optimize your configuration.

We will always contact you to clarify any possible issues and send you an order confirmation before proceeding with your order.

The B300PCE is designed for industrial, dusty or wet environments.

It has no moving parts such as fans or motors. Instead it relies on a huge oversized heat sink that is easy to clean. UL/cUL Certified for industrial and wet environments - certificate number - E4993665

  • UL/cUL rated for wet environments (2019 models) E4993665
  • Ideal for dusty and wet industrial environments.
  • Long service intervals.
  • LED lamp technology, Ten times more efficient than comparable halogen Projectors.
  • 25,000 hours bulb life - never exchange a bulb over the life of the projector.
  • Automatically adjusts to a wide line voltage range - 100V-277V, 50Hz-60Hz, 320W
  • Takes std. M-size Glass and Metal Gobos, up to Full Color.
  • Interchangeable Projection Lenses.
  • Passive Cooling - no fans or motors..
  • Unique yoke/stand-foot allows for Standalone or Truss mounting.
  • Projector
  • Order Code:ES-B300PCE
    Power Supply:100V-277V, 50-60Hz, 270W
    Ambient Temp. Range: -22°F to 140°F (-30°C to 60°C)
    Can be used in-/and outdoorsExterior Version
    UL/cUl CertificationUL/cUL rated for wet environments (2019 models) E4993665

  • Optical
  • Lamp:300W LED, 25,000h rated bulb life
    Projection Lens Included:yes, choose from options below
    Available Lenses:Narrow:f=290mm/10°, Semi-Narrow: f=200mm/15°, Medium: f=140mm/20°, Semi-Wide: f=115mm/25°, Wide: f=87mm/30°
    Effective Luminous Flux:12,000lm (effective flux 8,900lm)
    Color Temperature (Kelvin):6,000k +/-500k
    Dimmable:Yes, with trimmer

  • Lens Range
  • Bright - up to 70 ft
    Dim - up to 150 ft
    Dark - up to 300 ft (or more in very dark conditions)

  • Dimensions
  • Gobo Size:M-Size (OD66mm, ID48mm) Max. thickness: 5mm
    Total Length:21 - 26” (incl. lens)
    Height:13.2”
    Width:14.2”
    Weight:23 lbs

  • Package Contents
  • Power Cord
    Test Gobo
    Spare Gobo Retaining Ring
    Integrated Gobo Mounts
    User Manual

Projection Chart
