ECO Lines F150 - Focusable Virtual Line Projector

Quote Only

Color

Lens Option

Comments

Quantity

ECO Lines F150 Focusable Virtual Line Projector

Line Projector for Lanes, Walkways and Docks ECO Lines projectors are perfect for pedestrian safety, reducing accidents by increasing the facility awareness with visible walkways, aisles, or lanes. They reduce accidents and unplanned work stoppages for safety signs maintenance.

How To Order:
Enter your requirements in the fields above. We will verify your information and get back to you with any questions. Once we selected the correct product, we will contact you with the exact product specifications. Once you're ready, we'll proceed with your order.

Highlights:

Our brightest line projector yet
Focusing feature for optimizing the line appearance
Designed for rugged and challenging environments
Widest temperature and power range
Line length up to 2 x Distance
Adjustable line length option
Line Width: 3 to 6in.

Specifications:

See Spec Sheet below

Line length:
ECO Lines LED projectors project fixed line lengths that depend on two factors: Projection Distance and Fan Angle. The larger the fan angle and the projection distance, the longer the line. There are currently four fan angles, 90°, 73°, 53° and 25°.
Fan Angles:

90°: Line length = 1.9x distance
73°: Line length = 1.4x distance
53°: Line length = 0.9x distance
25°: Line length = 0.48x distance

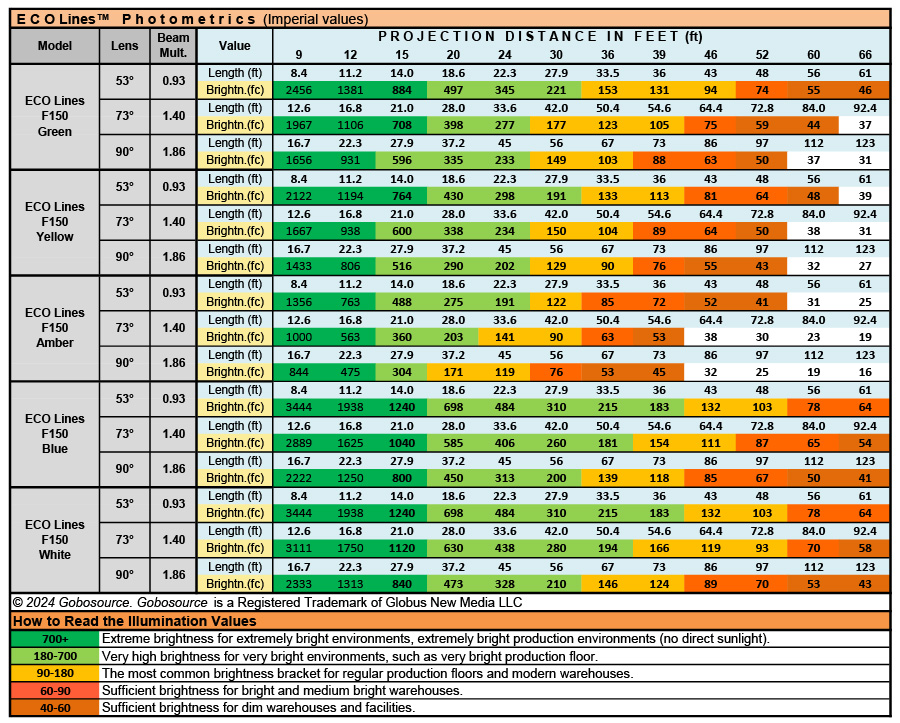

Photometrics:

Documentation:

Spec Sheet

User Manual
