ECO Spot C20PCE Gobo Projector for Rugged Environments

Quote Only

Lens Option

Comments

Quantity

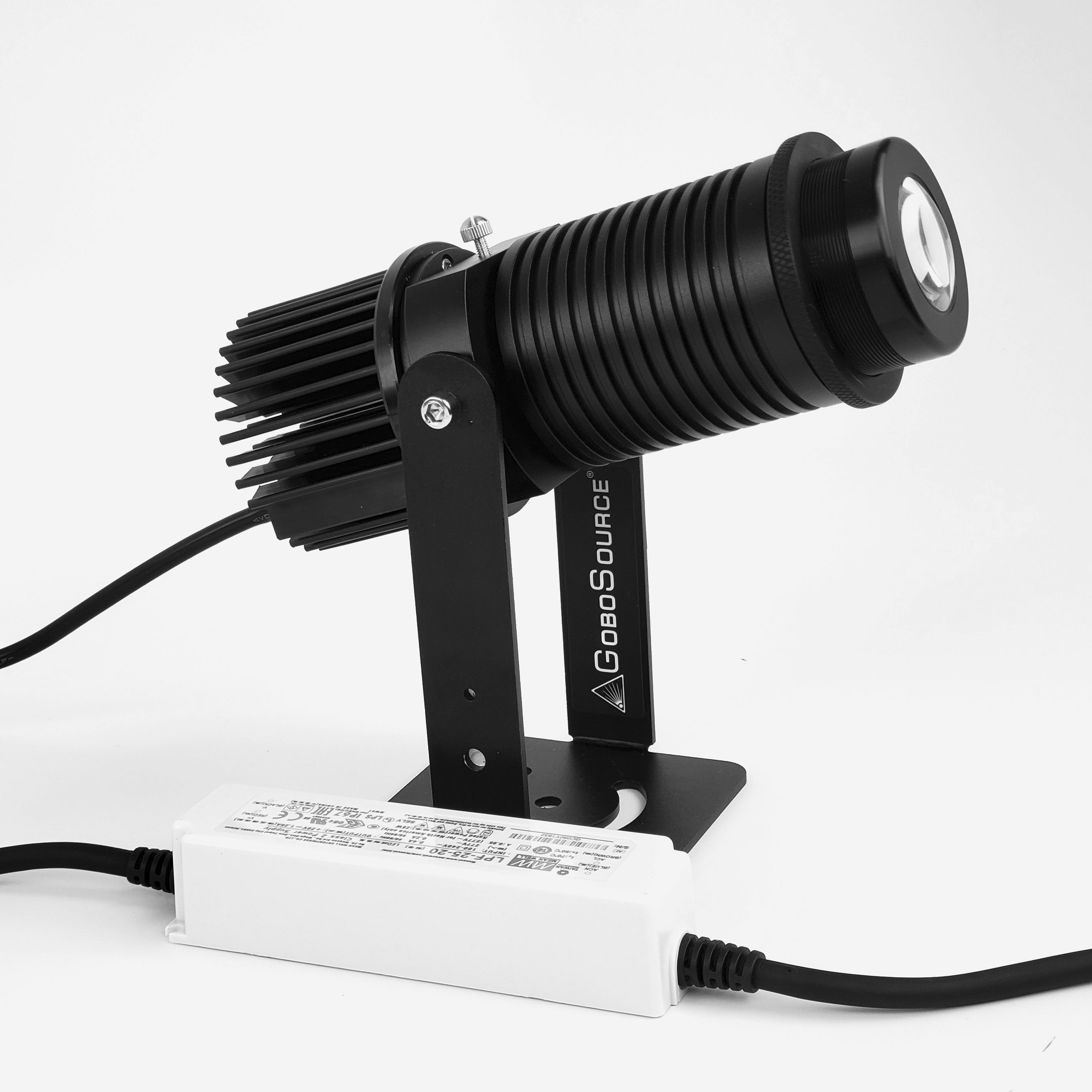

ECO Spot C20PCE - Compact Wall and Ceiling Mount Projector with Passive Cooling.

Description

Features

Specifications

Photometrics

Resources

The ECO Spot C20PCE is our most compact passive cooling, rugged, weather and dust resistant projector yet. Despite its small footprint, it accommodates interchangeable projection lenses and delivers brilliant images. Its contemporary design and simplicity make it well suited for a wealth of applications, and whenever a small, strong projector is required.
Our full range of standard lenses is available for this projector.

For extended projection distances, it can be equipped with our Ultra-Narrow Lens Kits, which you can order here:
For best image quality: Ultra-Narrow Lens Kit f=200mm, 7º
For maximum brightness: Ultra-Narrow Lens Kit f=220mm, 6º

Find The Right Projector - Click Here

Extremely compact, yet strong, crisp projection.

Passive Cooling, no fans or motors.

Threaded gobo holder for quick and easy gobo replacement, hand gobo rotation for easy gobo centering.

Interchangeable projection lenses make it easily adaptable to a wide range of applications.

35,000 hours LED life - never exchange a bulb over the life of the projector.

The Power Supply (driver) is detached, to allow for the smallest possible footprint.

Multi Voltage 100-240/277V 50/60Hz.

Full aluminum housing.

Order Code:	ES-C20PC
Power Supply:	100-240/277V, 50-60Hz, 25W (driver is detached from projector housing)
Ambient Temp. Range:	-22°F to 122°F (-30°C to 50°C)

Optical

Lamp:	20W LED, 35,000h rated life
Projection Lens Included:	yes, choose from options below
Available Lenses:	Narrow: f=140mm/10°, Semi-Narrow: f=100mm/15°, Medium: f=70mm/20°, Wide: f=56mm/25°, Ultra-Wide: f-28mm/45° (Max ID with this lens is 23mm)
Gobo Size:	E-Size - Outer Diameter: 37.5mm, Image Diameter: 25mm, max. Thickness: 3.3mm
Gobo Types:	Glass, Metal, Film (film life 2 to 5 days)
Effective Luminous Flux:	1,000lm (1800lm nominal)
Color Temperature (Kelvin):	7,000k +/-500k

Lens Range

Bright	- up to 30 ft
Dim	- up to 60 ft
Dark	- 140 ft

Dimensions

Base	2.75” x 3”
Total Length:	8-10” (depending on projection lens)
Total Height:	5.5” (incl. yoke)
Weight:	2.4lbs
Projector Box:	14” x 8” x 5”, 4.1 lbs
Master Carton:	16.5” x 14.5” x 11”, 8.5 lbs

Package Contents

Power Supply (Driver)

Test Gobo

User Manual

Projection Chart

ECO Spot Photometrics

User Manual

Spec Sheet

Find the Right Projector - Click Here

Product Warranty
