ECO Spot C60PCE Gobo Projector for Rugged Environments

The C60PCE is designed for industrial, dusty or wet environments.

• UL/cUL rated for wet environments (2019 models) E4993665
• Passive Cooling - no fans or motors.
• Ideal for dusty and wet industrial environments.
• Long service intervals.
• Wide line voltage range.
• 35,000 hours bulb life (L70).
• Quality optical system with interchangeable Lenses.
• Full Aluminum Housing
• Takes std. E-size gobos.

• Projector

Order Code:	ES-C60PCE
Power Supply:	100V - 240/277V, 50-60GHz, 70W
Ambient Temp. Range:	-22°F to 122°F (-30°C to 50°C)
Can be used in-/and outdoors	Exterior Version

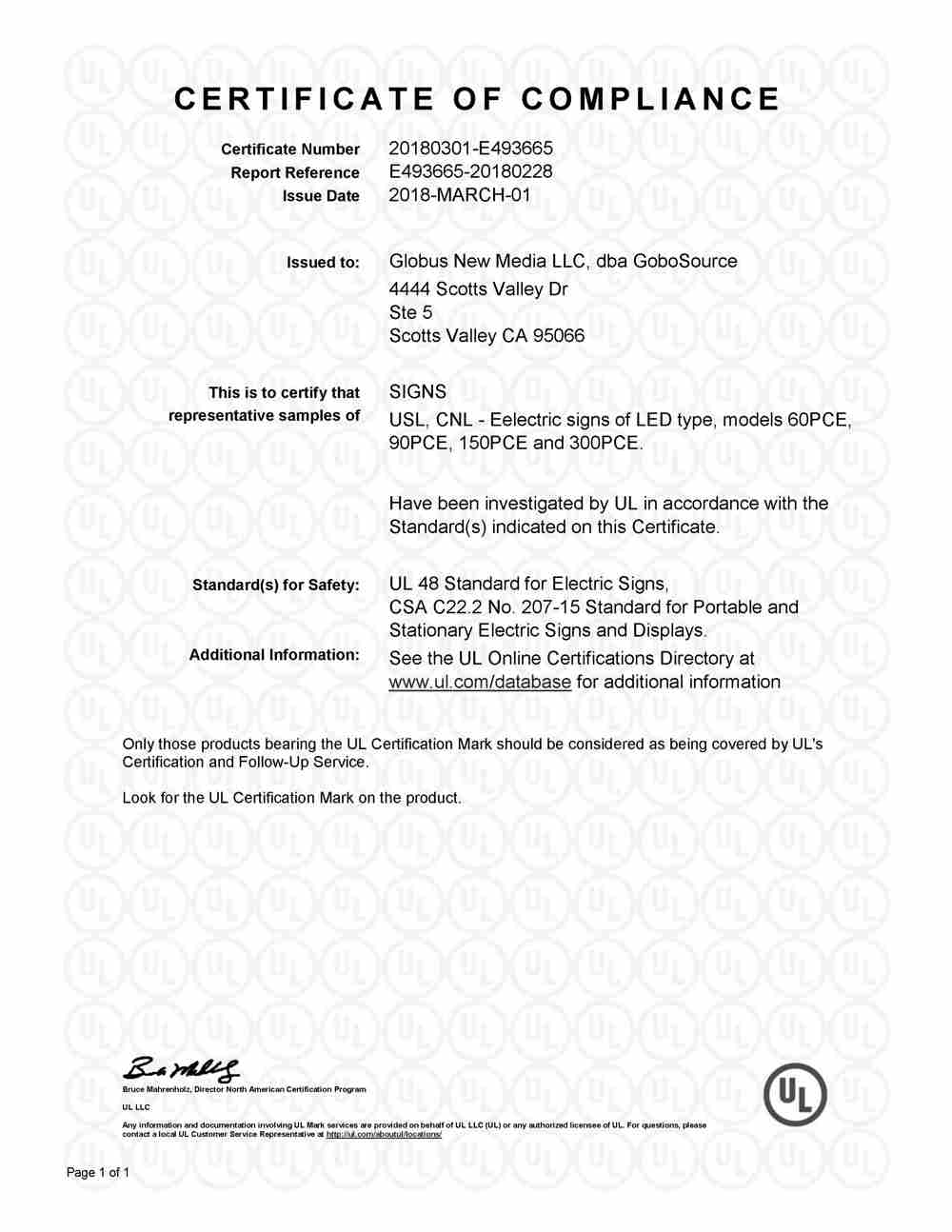

UL/cUl Certification	UL/cUL rated for wet environments (2019 models) E4993665



• Optical

Lamp:	60W LED, 30,000h rated bulb life
Projection Lens Included:	yes, choose from options below
Available Lenses:	Narrow: f=140mm/10°, Semi-Narrow: f=100mm/15°, Medium: f=70mm/20°, Ultra-Wide: f-28mm/45° (Max ID with this lens is 23mm)
Effective Luminous Flux:	2,400lm
Color Temperature (Kelvin):	6,000k +/-500k
Dimmable:	Yes, with trimmer



• Lens Range

Bright	- up to 50 ft
Dim	- up to 90 ft
Dark	- up to 180 ft (or more in very dark conditions)



• Dimensions

Gobo Size:	E-Size (OD37.5mm, ID25mm) Max. thickness: 4mm
Total Length:	15 - 18” (incl. lens)
Height:	11”
Width:	10.5”
Weight:	14 lbs



• Package Contents

Power Cord

Test Gobo

Spare Gobo Retaining Ring

Integrated Gobo Mounts

User Manual
