ECO Spot LED40C with Gobo Changer

Projection Lens (included)

ECO Spot LED40 - With Gobo Changer for Four Gobos


The ECO Spot LED40-C LED Gobo Projector features a brand new US made 40W high end LED plus quality optics. The integrated Gobo Changer holds up to four gobos. Not all slots need to be populated. After power on, it will re-start in the predefined settings. This model does not have Gobo Rotation.


  • Takes E-Size metal and glass Gobos up to Full Color.
  • Accepts film material for short term projection applications.
  • Interchangeable projection lenses
  • make it easily adaptable to a wide range of applications.
  • Unique yoke/stand-foot allows for Standalone or Truss mounting.
  • Full aluminum housing.


  • Projector
  • Order Code:ES-LED40-C
    Power Supply:90 - 230V, 50 - 60Hz, 0.5A, 48W
    Build Options:Rotator Version. Exterior Version

  • Optical
  • Lamp:40W LED, 50,000h rated bulb life, 5500k (+/- 500k) color temperature
    Projection Lens Included:yes, choose from options below
    Available Lenses:Narrow: f=140mm/10°, Semi-Narrow: f=100mm/15°, Medium: f=70mm/20°, Wide: f-50mm/25°
    Gobo Size:E-Size - Outer Diameter: 37.5mm, Image Diameter: 25mm Max. Thickness: 4mm
    Effective Luminous Flux:1,100lm
    Dimmable:Version with manual dimming available soon.

  • Gobo Changer
  • Gobo Capacity:One, Two, Three, or Four Gobos
    Change Interval:0s to 120s
    Interval Adjustment:Infinite per Manual Dial

  • Lens Range
  • Bright - up to 40 ft
    Dim - up to 70 ft
    Dark - 150 ft

  • Dimensions
  • Base7” x 3.75”
    Total Length:13” (incl. std. lens)
    Total Height:7.75”
    Weight:7 lbs

  • Package Contents
  • Power Cord
    Test Gobo
    Spare Gobo Retaining Ring
    Integrated Gobo Mounts
    User Manual

  • Resources

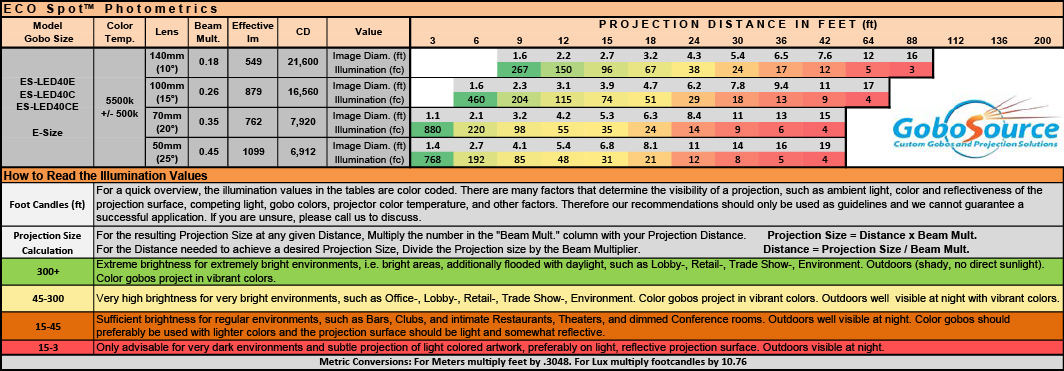

  • Projection Chart
    User Manual
    Changer User Manual
